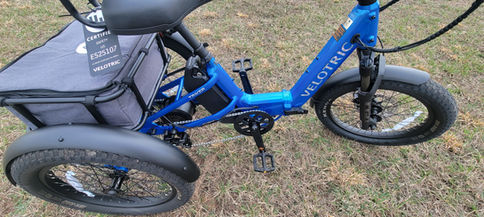

Velotric Triker Electric Tricycle

Specification & Geometry

Specification

Size Guide

Bike Size

One Size

User Height Range

4'10''-6'5''

Frameset

Frame

Aluminum Alloy

Fork

Hydraulic suspension 80mm travel with Lock-out

Electronics

Motor Hub

48V, 750W,1300W Peak, 90Nm

Battery

48V, 16.75 Ah, IPX7, Certificated by UL 2271

Cell

18650 cell, Certificated by UL 2580

Charger

48V, 3.0A Fast Charger

Display

3.5" Full color, High brightness, Bluetooth, Adjustable angle

Sensor

Torque and Cadence Sensor

USB Port

USB Type-C phone charge

Throttle Assist

Trigger-control, removable

Pedal Assist

5 PAS Levels

Walk Mode

2.0 MPH

Front Light

Light sensing 130 Lux /500 LM high-output integrated LED, adjustable angle

Rear Light

Braking Indicator, turn signal, rear light steady/flash, integrated with rear rack

App & Apple Find My™

APP OTA & Find My

Turn Light

Left/Right turn signal, with turn signal click

Horn

Electric horn integrated with front light, 90 db

Speed & Range

*Max ranger determined using Pas 1 throughout flat terrain with a rider weight of 198 lb.

Max Speed (Default)

12 MPH

Max Speed Adjustable Range

8~20 MPH

Class

1/2

Throttle Range

50 Miles

Pedal Assist Range

60 Miles

Drivetrain

Chainrings

40T, narrow wide chainring

Crankset

Aluminum Alloy, 152mm

Freewheel

7-speed, 11-28T

Chain

KMC 7-speed

Rear Derailleur

SHIMANO 7-speed

Shift Lever

SHIMANO 7-speed

Brake

Brake

Hydraulic Disc Brake

Rotors

180mm Front and Rear

Brake Levers

Aluminum Alloy, with power cutoff and parking brake

Wheel

Rims

Double-wall Aluminum Alloy

Front Hub

Aluminum alloy, nutted

Tire

KENDA 20x3.0" eBike puncture-resistant tires

Cockpit

Handlebar

Aluminum Alloy, Φ31.8mm, 660mm

Grips

Durable ergonomic grips, lockable

Stem

Foldable and adjustable, Aluminum Alloy, φ31.8mm, 60mm

Saddle

VELOTRIC Triker seat with adjustable back rest

Seatpost

Aluminum Alloy, φ30.9mm, 350mm/Aluminum Alloy, φ34.9mm, 260mm

Clamp

Aluminum Alloy, quick release/Aluminum Alloy, nutted

Supports

Fenders

Front and rear full coverage

Rear Rack

Aluminum Alloy

Pedals

Plastic

Weight & Load

Bike Weight

85.8lbs

Max Bike Load

500lbs（including rear basket load)

Certification

UL Certification

UL 2849

ISO Standard

ISO 4210

Geometry
