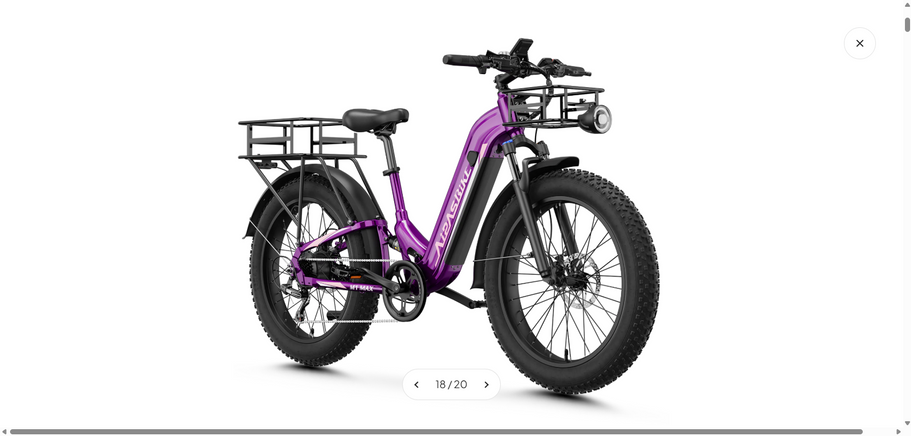

Aipas M1 Max Hydraulic Brake
$1,148.00
Quantity
Specifications
Vehicle Specifications
|
Pedal Assist Range |
85 Miles |
|
Electric-Only Range |
36 Miles |
|
Unloaded Top Speed |
36 MPH |
|
Loaded Top Speed |
32 MPH |
|
Dimensions |
80 × 26 × 44 in |
|
Max Load Capacity |
500 lbs |
|
eBike Net Weight |
90 lbs |
|
Torque |
110 Nm |
|
Battery |
48V × 17.5Ah, IP65 Waterproof |
|
UL Certification |
UL 2271 (Tested by SGS) |
Electric Motor & Control
|
Display |
48V LCD Display with USB Charging |
|
PAS Levels |
0–5 PAS |
|
Throttle |
Half-Twist Throttle / Optional Thumb Throttle |
|
Maximum Output |
48V / 37A, Temperature Control Protection |
|
Motor |
1800W Rear Hub Brushless Motor |
|
Sensors |
Speed Sensor |
|
Freewheel |
Shimano 7-Speed Indexing, 14–28T |
|
Rear Derailleur |
Shimano 14–28T |
|
Shifter |
Shimano 7-Speed |
|
Charger |
2A Smart Charger |
Frame Assembly
|
Front Suspension |
Aluminum Adjustable Shock Absorbers |
|
Front Suspension Travel |
Total Length 530mm, Travel 100mm |
|
Rear Suspension |
Center-Mounted Air Pressure Adjustable Suspension |
|
Handlebar |
Riser Handlebar, Grip Length 104mm, Total Length 66cm |
|
Pedals |
9/16", with Reflectors |
|
Chain |
1/2" × 3/32" × 118L, 21-Speed Indexing |
|
Crankset |
170mm Crank Arms, 48T Chainring |
|
Battery Weight |
9 lbs |
Assembly Components
|
Rim |
High-Strength Alloy 26" × 4.0, 12G, 36H |
|
Spokes |
12G × 257mm, EN15194 Compliant |
|
Tire Type |
All-Terrain Tire |
|
Tire Size |
26" × 4.0", 20 PSI |
|
Inner Tube |
26" × 4.0", 35mm Valve Stem |
|
Brake Levers |
Aluminum Alloy, Brake Priority Protection |
|
Front Brake |
Hydraulic Disc Brake |
|
Rear Brake |
Hydraulic Disc Brake |
|
Brake Rotors |
180mm |
|
Kickstand |
Heavy-Duty Aluminum Kickstand |
