Aipas F3 Fold MAX
$949.00
0-5 PAS Levels
Speed From 0 to 28+ Mph
Motor 1800W
Rear-Wheel Drive Motor
Max 500 Lbs
Weight Capacity 500 Lbs
48V 18Ah
Battery Capacity
Range 85 Miles
Single Charge Range
110 Nm
Max 25° Gradient
Compatible
Quantity
Specifications
Vehicle Specifications
| Specification Name | Specification Value |
|---|---|
| Pedal Assist Range | 85 Miles |
| Electric-Only Range | 40 Mile |
| Top Speed | 28 Mph |
| Dimensions | 66*27*48(Inch) |
| Folded Dimensions | 36*23*30(Inch) |
| Max Load Capacity | 500Lbs |
| Ebike Net Weight | 77 Lbs |
| Battery Weight | 8 Lbs |
| Torque | 110 Nm |
| Tize Size | 20*4.0, 20-25psi |
| Battery | 48V*18AH IP65 Waterproof |

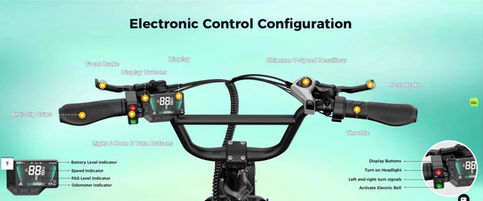

Electric Motor Control
| Specification Name | Specification Value |
|---|---|
| Display | LCD Display |
| Pas Levels | 0-5 PAS |
| Throttle | Half-Twist Throttle / Optional Thumb Throttle. |
| Maximum Output | Output:48V/31A, With Temperature Control Protection |
| Motor | 1800W Rear Hub Brushless Motor. |
| Freewheel | Shimano 7-Speed Indexing |
| Rear Derailleur | Shimano 14-28T |
| Shifter | Shimano 7-Speed |
| Charger | 2A Smart Charger, UL/FCC Dual Certified |
Frame Assembly
| Specification Name | Specification Value |
|---|---|
| Front Suspension | Aluminum Adjustable Shock Absorbers |
| Front Suspension | Travel Total Length 420mm, Travel 100mm. |
| Handlebar | Riser Handlebar, Grip Length 125mm, Total Length 660mm |
| Pedals | Folding, 9/16", With Reflectors |
| Chain | 1/2"*3/32"*118l, 21-Speed Indexing |
| Crankset | 170mm Crank Arms, 52t Chainring |
Certification Checklist & User DocumentationWhat's in the box
Ebike Geometry
A -- :Maximum Seat Height
28"
B -- :Top Tube Length
25"
C -- :Handlebar Length
27"
D --: Head Tube Length
15"
E -- :Min Seat Height
19"
F -- :Stand Height
26"
Show More
Product specification
Explore Aipas Ebike lineup, Pick the best ebike for you
| Product Compare Table | |||||
| Field name | Aipas® F3 Max Adventurer Ebike
Sale Price$899.00Regular Price$2,109.00 |
Aipas® F3 Adventurer Ebike
Sale Price$799.00Regular Price$1,799.00 |
Aipas® A4 Gentry Ebike
Sale Price$729.00Regular Price$1,499.00 |
Aipas® A2 Elite Ebike
Sale Price$689.00Regular Price$1,299.00 |
Aipas® M2 Pro Xterrain Ebike
Sale Price$949.00Regular Price$2,199.00 |
|---|---|---|---|---|---|
| Quick View | Quick View | Quick View | Quick View | Quick View | |
| Motor |
1800W |
1500W |
1000W |
750W |
1800W |
| Battery |
48V 18Ah |
48V 12.8Ah |
48V 12.8Ah |
48V 12.8Ah |
48V 17.5Ah |
| Torque |
110N.m |
100N.m |
78N.m |
55N.m |
110N.m |
| Max Range |
85Miles |
62Miles |
62Miles |
62Miles |
85Miles |
| Brakes |
Hydraulic brakes |
Disc Brakes |
Disc Brakes |
Disc Brakes |
Disc Brakes |
| Total Length |
66" |
66" |
67" |
66" |
80" |
| Handlebar Height |
48" |
47" |
46" |
47" |
44" |
